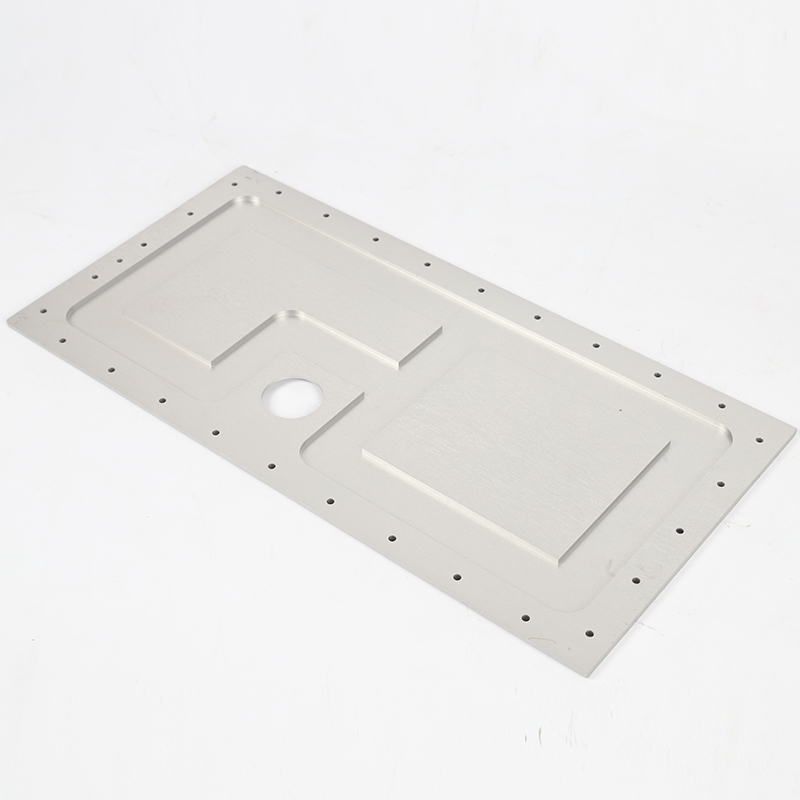

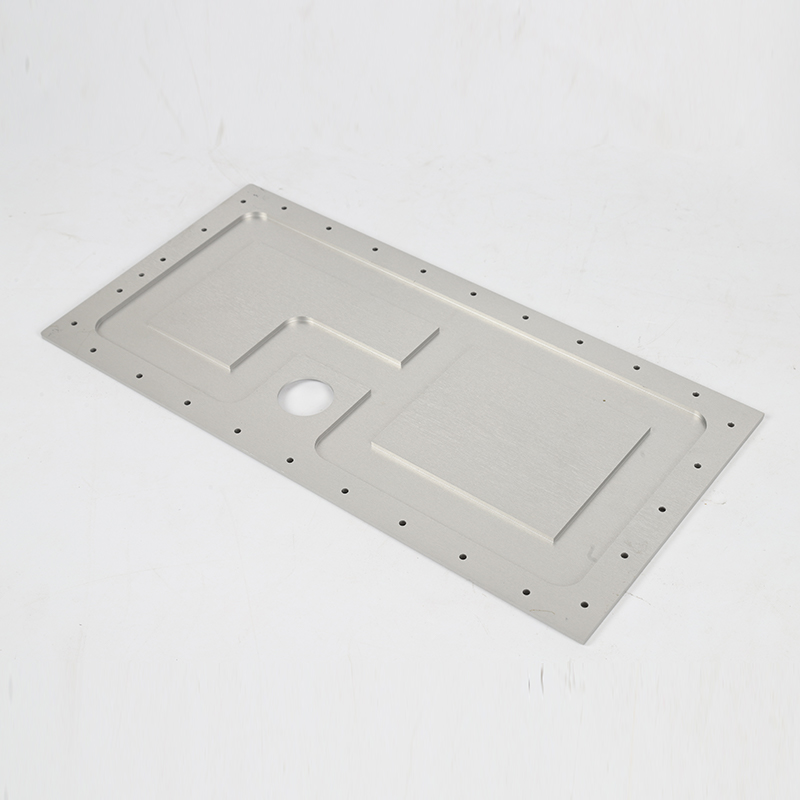

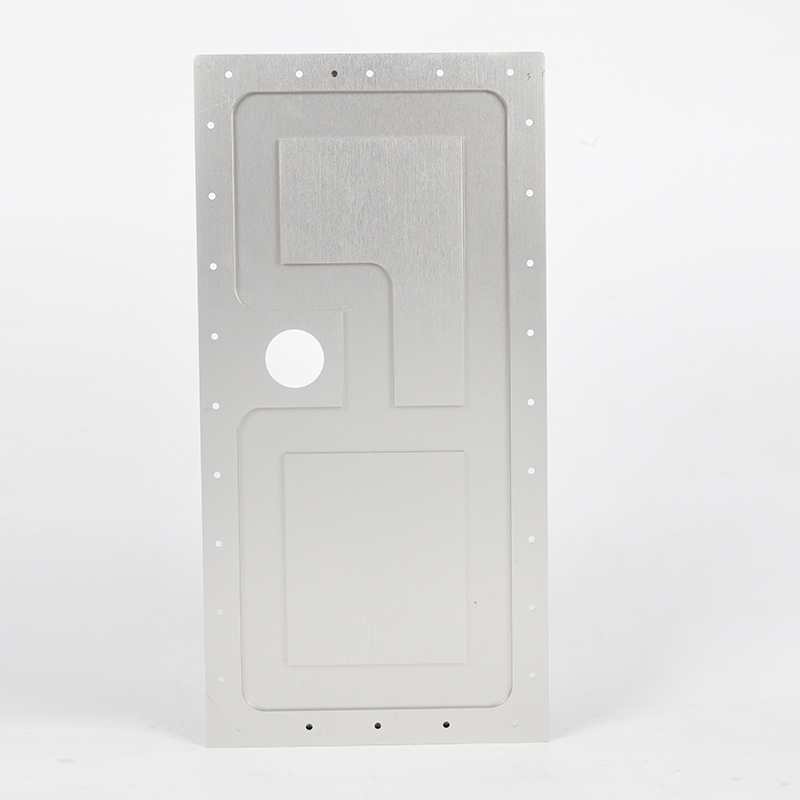

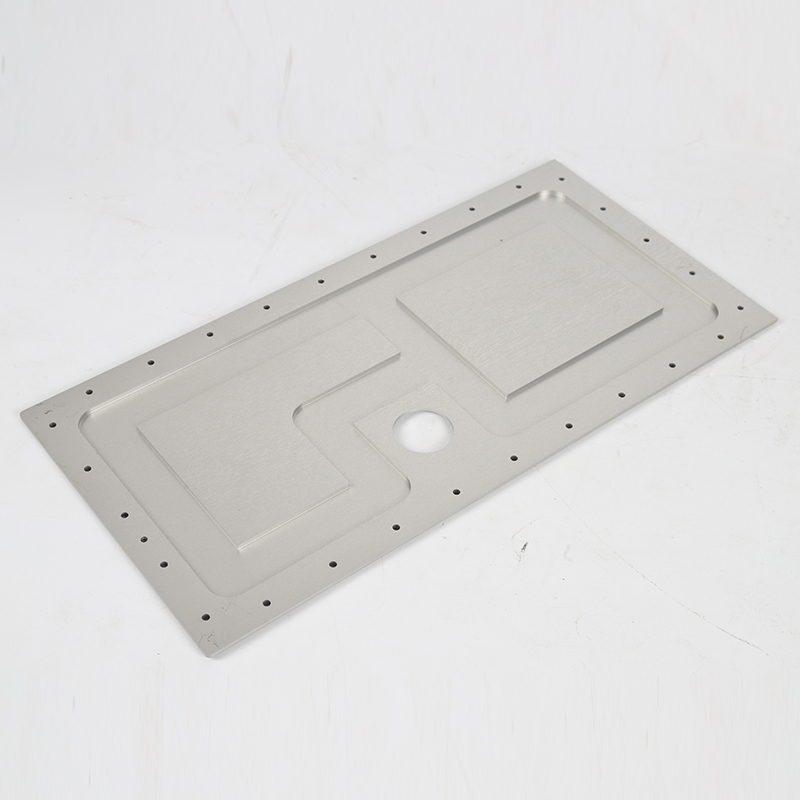

Precision CNC Machining Aluminum Panel

Product introduction

In the field of modern industry and science and technology, aluminum panels, as a key component, are widely used in all kinds of equipment and products. Aluminum panels manufactured by CNC (computer digital control) processing technology are the first choice for many high-end applications thanks to their high precision, high quality and diverse design characteristics.

Product characteristics

High accuracy and stability

CNC machining technology gives aluminum panels excellent dimensional accuracy and shape accuracy. Thanks to the advanced CNC system, the machining process can be accurate to the micron level, ensuring that the various dimensional parameters of the aluminum panel strictly meet the design requirements. This high precision not only ensures the perfect fit of aluminum panels during assembly, reduces assembly problems caused by dimensional deviations, but also improves the performance stability of the entire product. For example, in electronic equipment, high-precision aluminum panels can provide accurate positioning and reliable support for internal electronic components, ensuring the stability of signal transmission and the normal operation of the equipment.

Excellent surface quality

The CNC machining process enables the aluminum panel to obtain a smooth, flat and even surface texture. Through precise tool path control and suitable cutting parameters selection, it can effectively avoid scratches, ripples and other defects on the machined surface, showing a fine metallic luster. This is of great significance for some products with high appearance requirements, such as smartphones, tablets, high-end instruments and so on. The superior surface quality not only improves the beauty of the product, but also enhances its wear resistance and corrosion resistance, extending the service life of the product.

The ability to achieve complex shapes and structures

Aluminum panels in different application scenarios often need to have a variety of complex shapes and structures to meet specific functional requirements. CNC machining technology, with its powerful programming flexibility and multi-axis linkage processing ability, can easily manufacture aluminum panels with complex features such as profiled profiles, hollow patterns, and internal cavities. Whether it is a precise heat sink array, fine texture engraving, or complex three-dimensional surface modeling, it can be precisely achieved through CNC machining. This design freedom provides a broad space for product innovation, enabling aluminum panels to better integrate multiple functions, such as heat dissipation, shielding, decoration, etc., to meet the increasingly diverse needs of different industries.

Good material properties

As a commonly used metal material, aluminum has the advantages of low density, moderate strength, good electrical and thermal conductivity. The CNC machining process does not change the basic material properties of aluminum, so the processed aluminum panel can effectively conduct heat while maintaining light weight, providing a good heat dissipation solution for products with large heat dissipation requirements such as electronic devices. In addition, the machinability of aluminum is strong, and it is easy to carry out subsequent surface treatment, such as anodizing, electroplating, painting, etc., which further improves its corrosion resistance, wear resistance and decoration, and expands the application range and environmental adaptability of aluminum panels.

Manufacturing process

Raw material preparation

First of all, according to the design requirements and performance characteristics of the product, choose the appropriate grade of aluminum alloy raw materials. Common aluminum alloys such as 6061, 6063, 5052, etc., have different strength, hardness, corrosion resistance and processing properties to meet the needs of various application scenarios. After inspection, the raw materials are cut to the appropriate size and shape to prepare for subsequent processing.

Programming and design

Before CNC machining, it is necessary to use professional CAD/CAM (computer-aided design/computer-aided manufacturing) software for 3D modeling and programming of aluminum panels. Engineers according to the product design drawings, the shape, size, characteristics and other information of the aluminum panel into CNC machining code, accurate planning of the path of the tool, cutting speed, feed and other processing parameters to ensure the efficiency and accuracy of the processing process.

Processing process

CNC machining usually includes milling, drilling, boring, tapping and other processes, through the CNC machining center automatic tool change system and multi-axis linkage function, to achieve a full range of aluminum panel processing. In the milling process, the high-speed rotating tool cuts the aluminum material layer by layer to form the desired plane, outline and curved shape; Drilling and boring processes are used to process holes of various apertures to meet assembly and functional requirements; The tapping process is used to work the thread in the hole for subsequent fastening. During the machining process, the CNC system monitors the position and status of the tool in real time, and automatically adjusts the machining parameters according to the preset program to ensure the stability of the machining accuracy and quality.

Quality inspection and post-processing

After processing, aluminum panels need to undergo strict quality testing, including dimensional accuracy testing, shape accuracy testing, surface roughness testing, hardness testing, etc. Coordinate measuring instrument, roughness meter, hardness tester and other professional testing equipment are used to quantitatively evaluate the quality indicators of aluminum panels to ensure that the products meet the design requirements and quality standards. For qualified aluminum panels, follow-up surface treatment according to customer needs, such as anodic oxidation treatment can increase the oxide film thickness of aluminum panels, improve its corrosion resistance and insulation; Plating treatment can give aluminum panels different metal colors and decorative effects; The spray paint treatment can achieve a rich variety of color choices and personalized appearance design.

FAQ

Q: What is CNC workpiece aluminum panel?

A: CNC workpiece aluminum panel refers to the aluminum alloy sheet processed by computer numerical control (CNC) machine tools, with high precision, complex shape and excellent mechanical properties.

Q: What are the advantages of CNC machining aluminum panels?

A: CNC machined aluminum panels have the advantages of high precision, high consistency, strong customizability, high surface finish, high material utilization, and are suitable for applications requiring precision dimensions and complex shapes.

Q: What are the material choices for CNC machining aluminum panels?

A: Common aluminum panel materials include 6061-T6 (with good overall performance), 7075-T6 (high strength), 5052 (good corrosion resistance), etc., the specific choice depends on the application needs.

Q: What are the surface treatment methods of CNC machining aluminum panels?

A: Common surface treatment methods include anodic oxidation, electrophoretic coating, powder spraying, wire drawing treatment, etc., which can improve the corrosion resistance, beauty and wear resistance of aluminum panels.

Q: What are the quality control measures for CNC machining aluminum panels?

A: Quality control measures include raw material inspection, processing monitoring, finished product inspection (such as dimensional measurement, surface roughness detection), first piece inspection and batch sampling inspection, etc., to ensure product quality meets standards.
