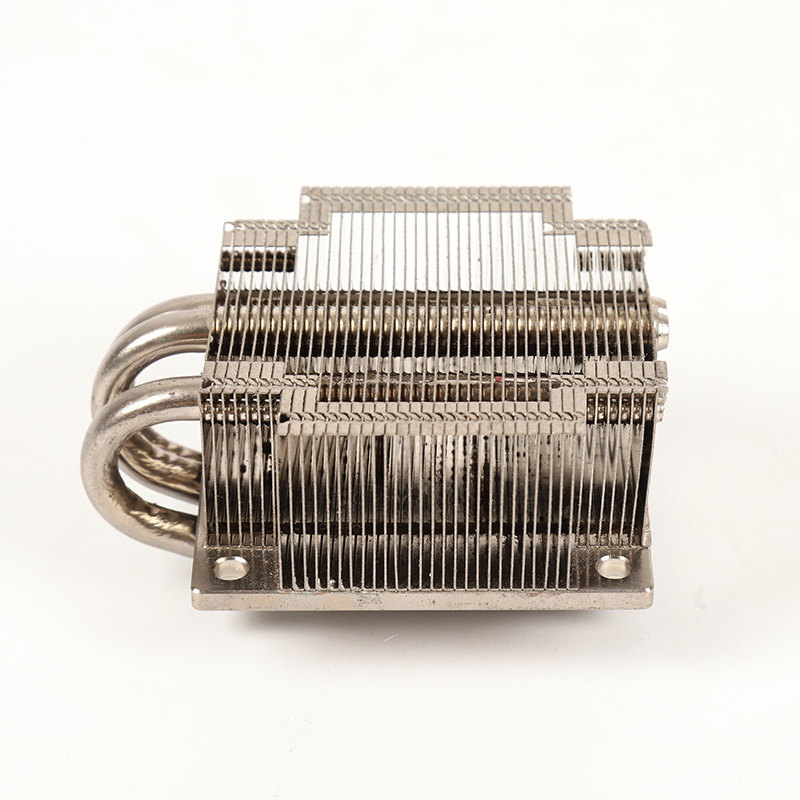

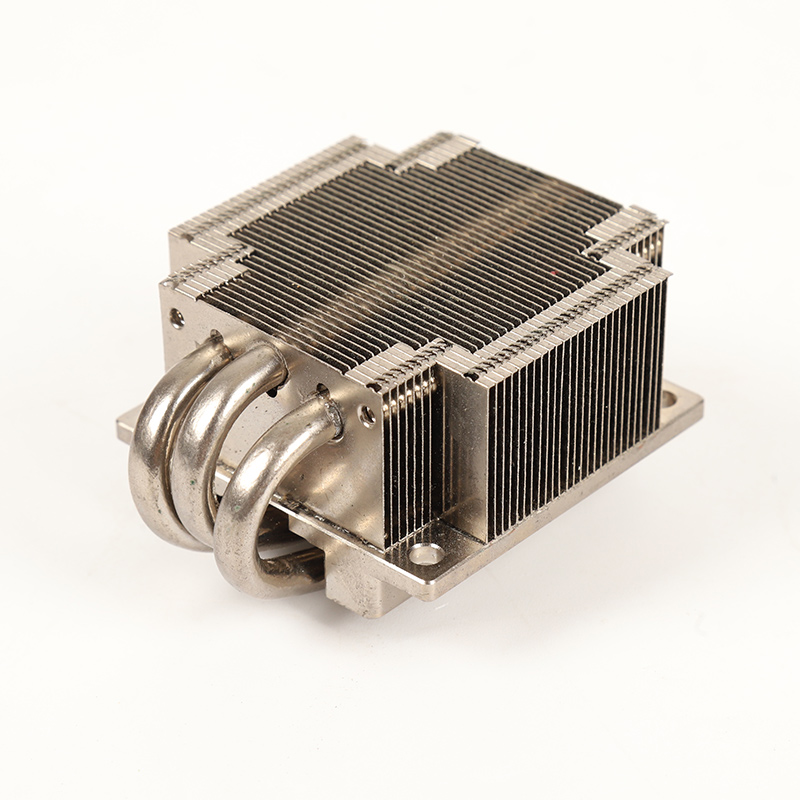

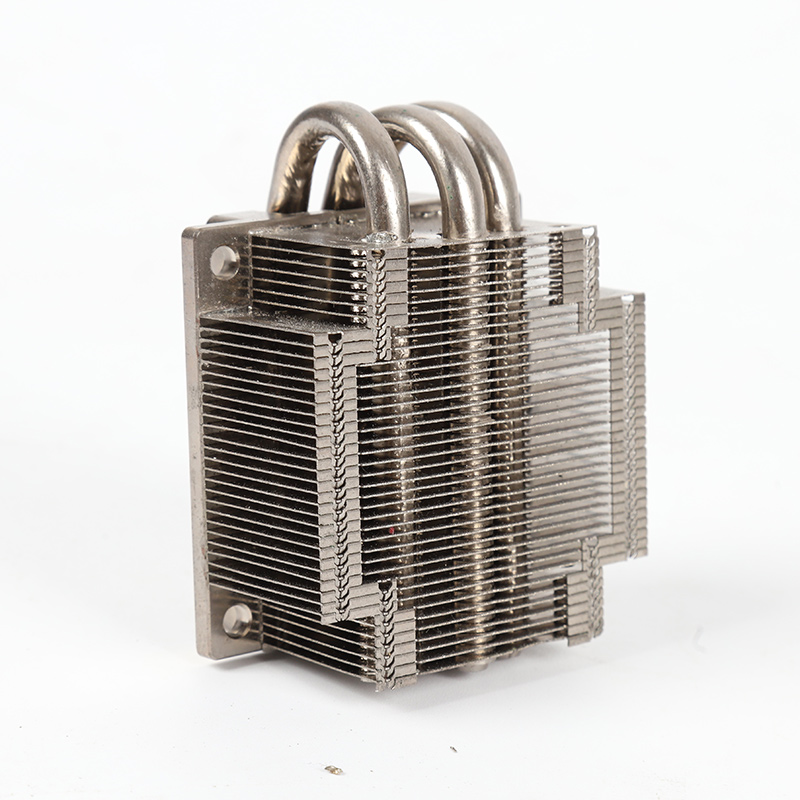

Fin Heat Sink The Heat Sink Of The CPU Module

Product introduction

In today's era of rapid development of computer technology, the performance of the CPU continues to improve, but its power consumption also increases, and the heat dissipation problem has become a key factor to ensure the stable operation of the CPU and the best performance. As an efficient CPU module heat sink, Fin heat sink occupies an important position in the field of computer heat dissipation by virtue of its unique design, excellent heat dissipation performance and reliable quality. This article will give a comprehensive and in-depth product introduction of the Fin heat sink, covering its working principle, structural characteristics, manufacturing process, performance advantages, compatibility with CPU and practical application performance, etc., in order to provide detailed reference materials for the majority of computer users and hardware enthusiasts. Help them better understand and choose the right CPU heat sink for them.

The heat dissipation principle of the Fin heat sink is based on three basic heat transfer modes: heat conduction, heat convection and heat radiation. When the CPU is working to generate heat, the heat is first transmitted to the main structure of the heat sink through close contact with the bottom of the heat sink. Radiators usually use metal materials with high thermal conductivity, such as aluminum alloy, which can quickly spread the heat.

Its unique Fin (fin) structure greatly increases the radiator's contact area with the air. As air flows through the fins, heat is transferred from the radiator to the air through thermal convection, heating the air and taking the heat away. At the same time, the radiator surface will also emit a small amount of heat to the surrounding environment in the form of thermal radiation. Through the synergistic effect of these three heat transfer methods, the ram Fin radiator can effectively dissipate the heat generated by the CPU, thereby maintaining the CPU in a suitable operating temperature range and ensuring its stable and efficient operation.

Structural characteristics

Stamping fins: The stamping process allows fins to be shaped and sized with high accuracy and consistency. The fins are usually thin, closely arranged and parallel to each other, which greatly increases the heat dissipation area and improves the heat exchange efficiency. The stamped fins can be optimized according to different heat dissipation requirements, such as adjusting the spacing, height and thickness of the fins to achieve the best balance between heat dissipation and air flow characteristics.

Snap-on design: The Fin is tightly fastened to the base or heat pipe of the radiator by a snap-on (Fin) connection. This design not only simplifies the assembly process of the radiator and improves production efficiency, but also ensures good heat conduction between the fins and the base, reducing thermal resistance, so that heat can be more smoothly transferred from the base to the fins for dissemination. At the same time, the buckle structure has good stability and reliability, and can maintain the fixed state of the fins during long-term use, and is not easy to loose or deformation.

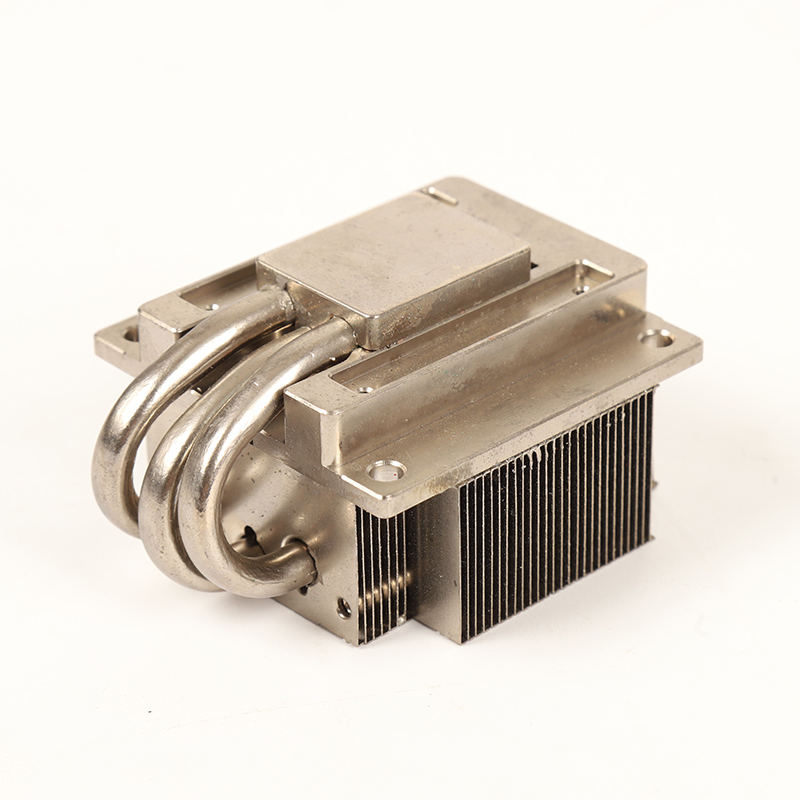

Heat pipe and base integration: Many ram Fin radiators are equipped with heat pipes, which are usually embedded inside the radiator base and connected to the area in direct contact with the CPU. The heat pipe uses the principle of phase change of the working medium inside it during the process of evaporation and condensation, which can quickly conduct heat from the base to the fin area, further enhancing the overall heat dissipation capacity of the radiator. The distribution and number of heat pipes can be rationally configured according to the power and heat dissipation requirements of the heat sink to optimize the heat transfer path and efficiency.

Optimized base design: The radiator base is a key part of the direct contact with the CPU, and its surface is usually processed with fine processing, such as milling, grinding, etc., to ensure that there is a good flatness and contact area between the CPU top cover, thereby reducing the contact thermal resistance and improving the heat transfer efficiency. The material selection of the base is also crucial, generally using aluminum alloy with high thermal conductivity, some high-end products may also use materials with better thermal conductivity such as copper to ensure that the heat generated by the CPU can be quickly absorbed and transferred to the fins and heat pipes.

Manufacturing process

Stamping process: A high-precision stamping die is used to press the sheet metal into the desired fin shape. The stamping process requires strict control of parameters such as mold accuracy, stamping pressure and speed to ensure the dimensional accuracy, shape consistency and surface quality of the fins. The advanced stamping process can ensure the production efficiency while realizing the efficient manufacturing of complex shaped fins, which provides the basic guarantee for the high performance of the radiator.

Surface treatment: In order to improve the corrosion resistance and heat dissipation efficiency of the radiator, it is usually subjected to surface treatment. Common surface treatment methods include anodic oxidation, electrophoretic coating and nickel plating. Anodizing can form a dense oxide film on the surface of the radiator, which not only enhances its corrosion resistance, but also improves the hardness and wear resistance of the surface. Electrophoretic coating can make the radiator obtain uniform, beautiful and good protective coating. Nickel plating can improve the surface finish and oxidation resistance of the radiator, and further optimize its heat dissipation performance and appearance quality.

Heat pipe manufacturing and assembly: The manufacture of heat pipes involves a complex process, including the processing of pipes, vacuuming, filling of working medium and sealing. When the heat pipe is assembled with the radiator base and fins, special welding or Mosaic processes are required to ensure a tight connection between the heat pipe and other components and good heat conductivity. This process requires strict process control and quality testing to ensure that the heat pipe can work normally and effectively play its heat dissipation role.

Fastening process: The stamping fins are fastened to the base or heat pipe by fastening, requiring precise mold and process control to ensure that the fins are tightly fastened, firm and evenly distributed. It is important to avoid damage to the fins during the fastening process and ensure that the heat conduction between the fins and the base is not affected, which is essential to improve the overall heat dissipation efficiency and reliability of the radiator.

Performance advantage

Efficient heat dissipation performance: With its optimized Fin structure, heat pipe technology and good heat transfer design, the stamped fin radiator is able to quickly and efficiently dissipate the large amount of heat generated by the CPU. In the case of high load operation, such as large-scale games, graphics rendering or scientific computing and other tasks, it can significantly reduce the temperature of the CPU, avoid performance degradation, crash and even hardware damage caused by overheating, and ensure that the CPU is always in a stable working state, to fully play its performance potential.

Compact structure design: Its compact structure, relatively small space, suitable for a variety of different sizes and types of computer chassis installation. Whether it is a small ITX case or a standard ATX case, the rambutton Fin radiator can be easily installed and compatible with other hardware components, giving users more flexibility and space utilization when building computer systems.

Good mute effect: With the continuous improvement of computer users' requirements for the use of experience, the noise problem of the radiator is getting more and more attention. The ram Fin radiator pays attention to the aerodynamic principle in the design, through the optimization of fin spacing and shape, as well as the reasonable collocation of cooling fans, can effectively reduce the noise generated during the operation of the fan under the premise of ensuring the heat dissipation performance. Some high-end products also use intelligent temperature control technology to automatically adjust the fan speed according to the CPU temperature, further reducing unnecessary noise generation and creating a quiet and comfortable use environment for users.

Reliable quality and stability: After strict manufacturing process and quality inspection process, stamping Fin radiator has a high quality reliability and stability. Its strong structural design and high-quality material selection can withstand long-term high temperature working environment and mechanical vibration, and is not easy to deformation, loosening or damage, ensuring that the radiator can stably provide heat dissipation protection for the CPU during the entire service life cycle of the computer, reducing the system shutdown and maintenance costs caused by radiator failure.

FAQ

Q: What is a Ram fin Radiator CPU module radiator?

A: A fin heat sink CPU module Heat sink is a heat dissipation device manufactured by a stamping process that features tightly arranged metal fins (fins) that are fastened to the CPU module by a snap-on method to provide efficient heat transfer and heat dissipation performance.

Q: What are the advantages of the Ram fin radiator CPU module radiator?

A: The main advantages of this radiator include high thermal conductivity, good aerodynamic design, ease of installation and maintenance, and relatively low cost. In addition, thanks to the stamping process, complex shapes and fine structures can be achieved.

Q: How to choose the right ram fin radiator CPU module radiator?

A: The size, shape, material thermal conductivity and compatibility with the CPU module should be considered when selecting the heat sink. It is also necessary to evaluate whether the heat dissipation capability meets the needs of the specific application, such as the power consumption and operating temperature range of the processor.

Q: How does the Ram fin Radiator CPU module radiator work?

A: When the CPU generates heat, this heat is conducted through the contact surface to the base of the radiator, and then dissipated into the air by convection and radiation. Tightly packed fins increase surface area, which improves heat dissipation efficiency.

Q: How do I install and maintain a Ram fin radiator CPU module radiator?

A: Before installation, ensure that the heat sink is in close contact with the CPU module, and use appropriate thermal conductivity materials to fill the gap. During maintenance, clean the surface of the heat sink regularly to prevent dust accumulation from affecting heat dissipation. At the same time, check whether the buckle structure is firm, and adjust or replace it if necessary.

Q: Which applications are the Ram fin Radiator CPU module radiator suitable for?

A: This type of heat sink is widely used in computer hardware, servers, workstations and other electronic devices that require efficient heat dissipation, especially in components such as high-performance processors and graphics processing units (Gpus).
