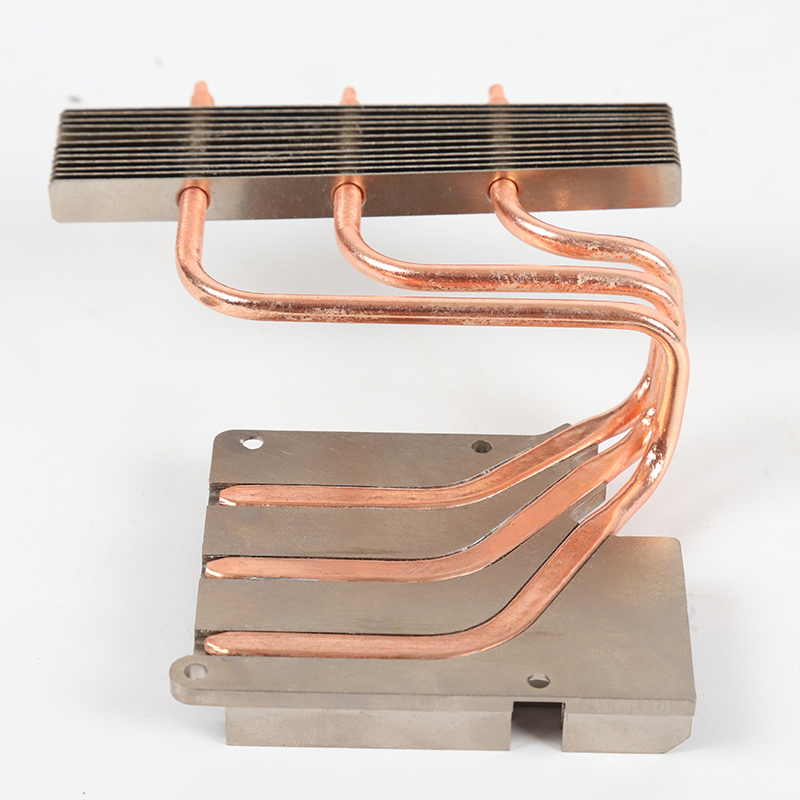

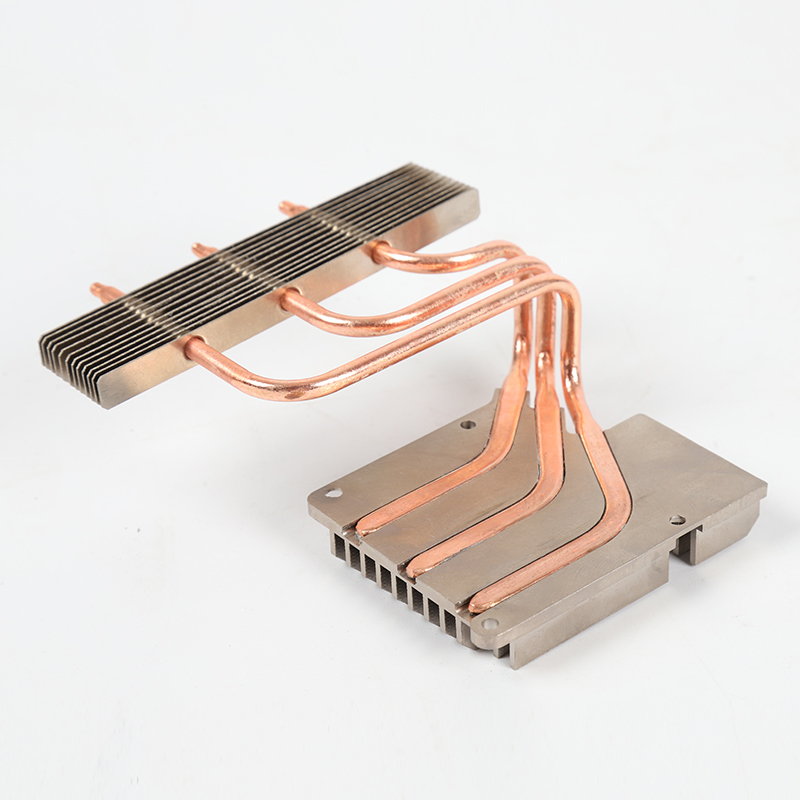

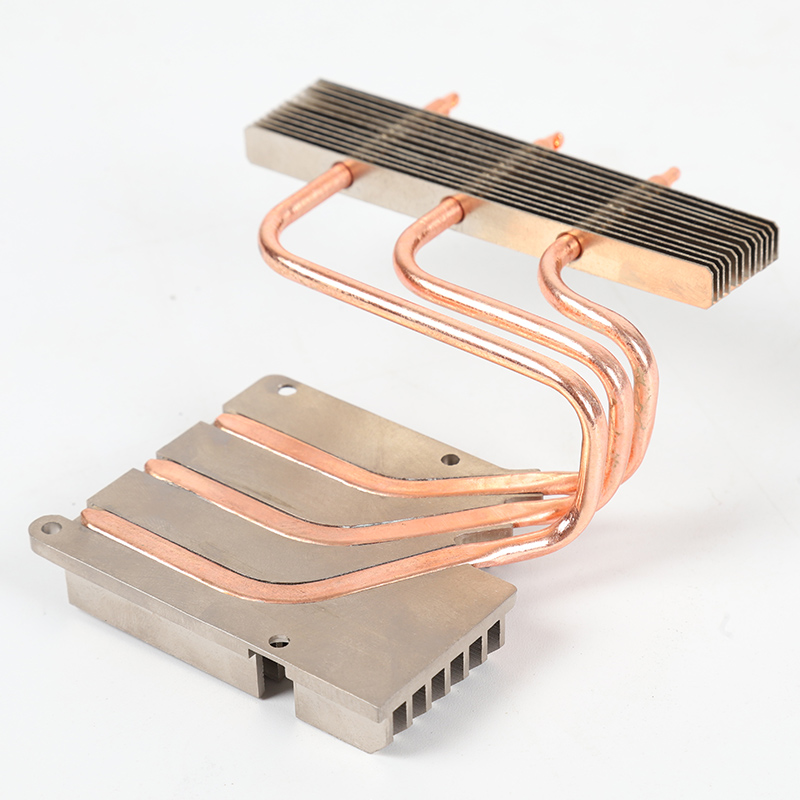

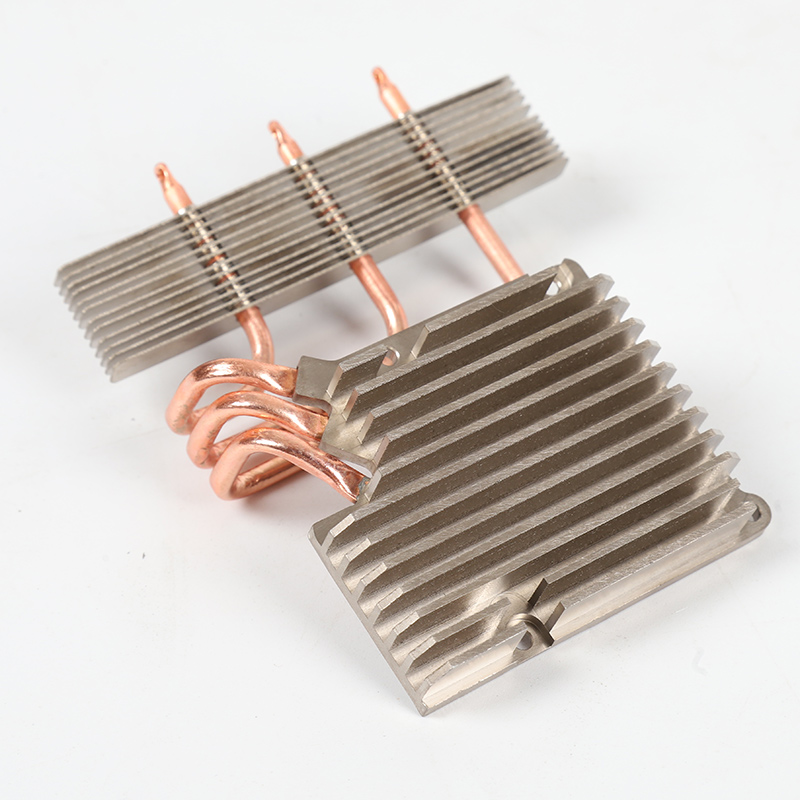

Heat Pipe Welding Radiator Industrial Server Cooling Group

Product introduction

The Heat pipe welding radiator Industrial Server cooling unit is a high-performance cooling device designed and developed specifically for the problem of high heat flux heat dissipation of industrial servers. The cooling group integrates high efficiency heat pipe technology and precision welding process. Through optimized structural design and heat conduction path, the heat generated inside the server can be quickly and effectively transferred to the external environment, so as to maintain the internal components of the server within the appropriate operating temperature range and ensure the efficient and stable operation of the server.

Product working principle

Heat pipe working principle: Heat pipe is one of the core components of the cooling group, its internal packaging has an appropriate amount of working media (such as pure water or special coolant), and sealed in a vacuum environment. When the evaporation end of the heat pipe absorbs the heat generated by the heat source of the server, the internal working medium quickly evaporates and vaporizes, and the steam flows to the condensing end under the action of a small pressure difference. At the condensing end, the steam releases latent heat when it cools and condenses into a liquid, and then relies on gravity or capillary force to return to the evaporation end, so the cycle is repeated to achieve efficient heat transfer, and its equivalent thermal conductivity is several times or even tens of times higher than that of traditional metal materials.

Heat dissipation process: The heat generated by heating components such as the server chip is first transferred to the heat dissipation base which is closely fitted with the evaporation end of the heat pipe. The heat pipe quickly conducts the heat to the condensing end, and the heat at the condensing end is dissipated to the surrounding air through the large area of the heat dissipation fin. At the same time, the cooling group is equipped with a high-performance fan to generate forced air flow, accelerate the air flow, further improve the heat exchange efficiency between the heat fin and the air, so that the heat is quickly discharged from the server chassis, thus maintaining a low temperature environment inside the server.

Product features and advantages

Efficient heat dissipation performance: The use of advanced heat pipe technology, with extremely high thermal conductivity, can quickly export the high heat inside the server, effectively reduce the chip temperature, for example, under full load operating conditions, the CPU temperature can be controlled at the level of [X]℃ lower than the traditional radiator, greatly improving the stability and reliability of the server, reduce the crash caused by overheating, performance decline and other problems.

Precision welding process: The heat fin and the heat pipe are connected by precision welding to ensure a good thermal contact interface, minimize the contact thermal resistance, ensure that the heat can be transferred smoothly from the heat pipe to the fin, improve the overall heat dissipation efficiency, the welding part is firm and reliable, can withstand the vibration and impact during the operation of the server, and avoid affecting the heat dissipation performance due to loosening.

Customized design: Fully consider the architecture and layout of different industrial servers, and can be customized design and production according to the specific size of the server, heat source distribution and heat dissipation requirements. Whether it is a 1U, 2U or higher server, it provides a perfectly adapted cooling solution to ensure that the heat sink works closely with the server components for optimal heat dissipation.

High reliability and stability: The selection of high-quality materials, including corrosion resistance, excellent thermal conductivity of heat pipe materials and high-strength heat fin materials, after strict quality testing and reliability testing, can be in complex and harsh industrial environment for long-term stable operation, such as high temperature (up to [specific high temperature value]), high humidity (up to [specific humidity value]) and strong electromagnetic interference environment, It still maintains excellent heat dissipation performance to provide reliable heat dissipation protection for the server.

Low noise operation: Equipped with optimized design of low noise fans, under the premise of ensuring sufficient air volume, effectively reduce the noise of fan operation. Through intelligent fan speed regulation technology, the fan speed is automatically adjusted according to the internal temperature of the server, achieving a good balance between heat dissipation performance and noise control, providing a quiet environment for the operation of industrial servers, especially suitable for noise-sensitive workplaces, such as data center rooms, laboratories, etc.

FAQ

Q: What is a heat pipe welded radiator?

A: Heat pipe welding radiator is a heat dissipation device that uses heat pipe technology to transfer heat efficiently, and connects heat pipes and heat sinks together through the welding process to improve the cooling efficiency of electronic equipment such as servers.

Q: What are the advantages of heat pipe welded radiators over traditional radiators?

A: Heat pipe welded radiators have higher thermal conductivity efficiency, faster response speed and longer service life. They are able to dissipate heat more efficiently, keeping equipment operating at lower temperatures.

Q: Are heat pipe welded radiators suitable for all types of servers?

A: Most modern servers are compatible with heat pipe welded radiators, but specific compatibility depends on the server model and heat sink specifications.

Q: Can the use of heat pipes to weld radiators significantly reduce server temperatures?

A: Yes, heat pipe welding radiator can significantly improve the heat dissipation efficiency, thus effectively reducing the server operating temperature.
