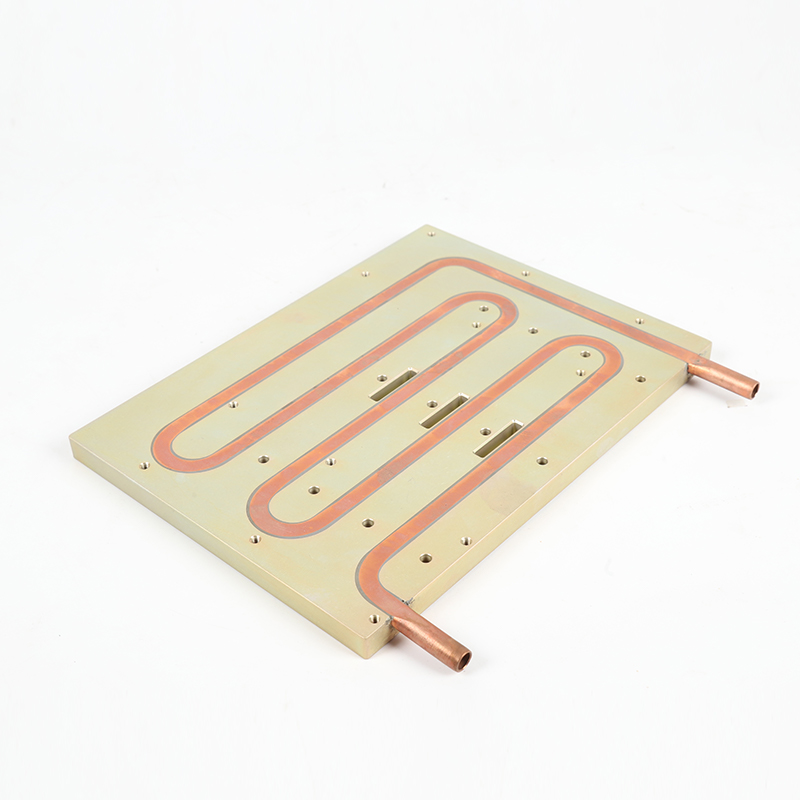

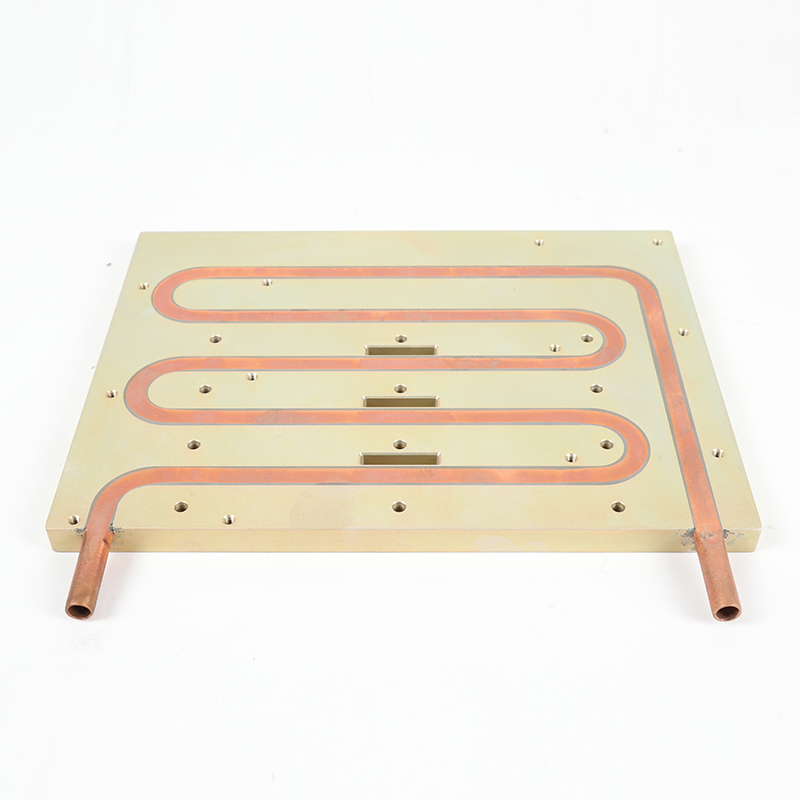

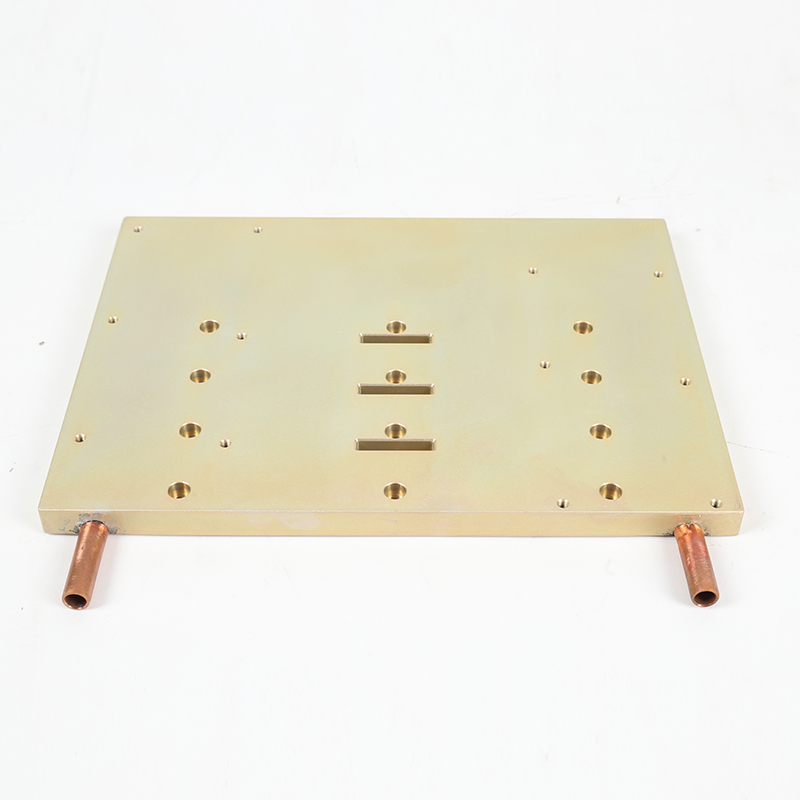

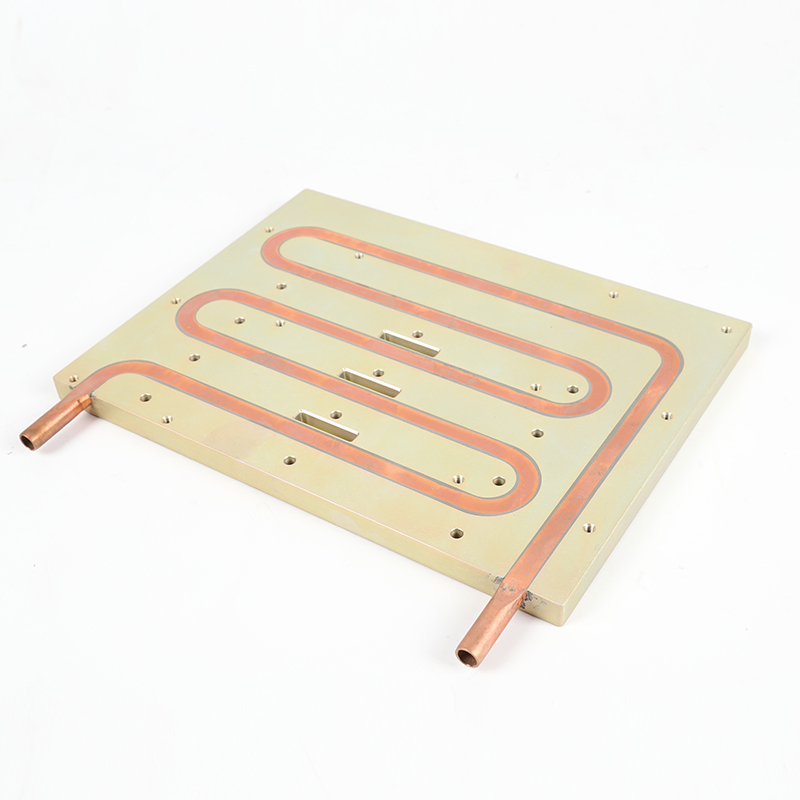

Liquid Cold Plate With Copper Pipe Water Cooling

Product introduction

The core components of the copper tube water-cooled liquid cooling plate include a high-purity copper tube and a metal cooling substrate, which are closely combined to form a coolant circulation channel and heat conduction path. When the equipment is running hot, the heat is transferred to the heat dissipation substrate in close contact with the heat source through thermal conduction, and the substrate quickly diffuses the heat to the internal copper tube network. The coolant (such as water, glycol solution, etc.) circulates in the copper tube driven by external power, absorbs heat with the high specific heat capacity of the coolant, so that its temperature rises, and then the coolant carrying heat flows to the external radiator, releases heat through heat exchange with the air, and the cooling coolant returns to the copper tube water-cooled liquid cooling plate again. Continuously and efficiently dissipate the heat generated by the equipment, maintain the equipment within the appropriate operating temperature range, ensure the stable operation of the equipment, and avoid problems such as performance degradation, failure or even damage caused by overheating.

Product features and advantages

Efficient heat dissipation performance: The copper tube has excellent thermal conductivity, up to 380-400 W/(m·K), which can quickly transfer heat to the coolant and achieve rapid heat transfer. Compared with the traditional air-cooled heat dissipation, under the same conditions, the copper tube water-cooled liquid cooling plate can reduce the temperature of the heating element by 20-30 ° C or more, effectively meeting the strict requirements for heat dissipation of high-power equipment such as server CPU, GPU, industrial laser, etc., ensuring the stability and reliability of the equipment under high load operation, and improving the overall performance of the equipment. Avoid crash, calculation errors, power attenuation and other problems caused by overheating, extend the service life of equipment, reduce equipment maintenance costs, and provide a solid guarantee for efficient production and operation of enterprises.

Precise temperature control: Through the precise design of copper pipe diameter, wall thickness, layout and coolant flow rate, flow rate and other parameters, can achieve accurate control of equipment temperature, temperature fluctuations are controlled within a very small range. This is essential for temperature-sensitive equipment, such as optical modules in optical communication, precision instruments in medical equipment, etc., to ensure that the equipment works in a stable temperature environment, improve the accuracy and repeatability of measurement or experiment, ensure the stable performance of the equipment and reliable data, and provide a reliable heat dissipation guarantee for the research and production in the high-tech field. It will help promote technological breakthroughs and innovative development in related fields.

Compact and flexible structure: The structure of the copper tube water-cooled liquid cooling plate is compact, which can be customized according to the shape and space requirements of different equipment, and flexibly adapt to a variety of complex installation environments. Whether it is the limited space of small electronic equipment or the specific layout of large industrial equipment, the perfect fit with the equipment can be achieved by optimizing the arrangement and bending mode of copper pipes, making full use of space and improving heat dissipation efficiency, while not affecting the normal layout and functional realization of other components of the equipment, providing strong support for the miniaturization and integrated development of the equipment. Enhance the market competitiveness and adaptability of products.

High reliability and stability: The use of high-quality copper pipe and metal substrate materials, with good corrosion resistance and mechanical strength, can be long-term stable operation in harsh working environment. Components such as pumps, pipes and joints in the coolant circulation system are strictly screened and tested to ensure the tightness and stability of the entire cooling system, reducing the risk of heat failure due to leakage, corrosion and other problems, improving the availability and maintenance of equipment, and reducing operating costs and maintenance workload. In addition, the structural design of the water-cooled plate is optimized to effectively resist thermal stress and mechanical stress, avoid deformation, cracking and other problems due to long-term use, further ensure the reliability and stability of the product, and provide a solid backing for the stable operation of the equipment.

Low noise operation: Compared with the large noise generated by the high-speed fan rotation in the traditional air-cooled cooling system, the copper tube water-cooled liquid cooling plate mainly relies on the natural convection of the coolant and the low speed fan of the external radiator (even without the fan in some efficient cooling designs) for heat dissipation during operation, and the noise generated is extremely low. It provides a quiet operating environment for noise-sensitive application scenarios (such as libraries, offices, medical environments, etc.), improves user experience and work efficiency, and is also in line with the development trend of modern electronic equipment for low noise design, which is conducive to the promotion and application of equipment in more environments, and expands the application scope and market prospects of products.

FAQ

Q: What is a copper tube water-cooled liquid cooling plate?

A: Copper tube water-cooled liquid cooling plate is a water cooling system that uses copper tube as the main heat transfer element, and takes away heat through the coolant circulation in the copper tube.

Q: Why did you choose copper as the material for the cooling plate?

A: Copper has extremely high thermal conductivity and good mechanical properties, making it an ideal material for manufacturing efficient cooling plates.

Q: What is the working principle of the copper tube water-cooled liquid cooling plate?

A: Its working principle is through the coolant circulation in the copper tube, the heat is transferred from the heat source to the coolant, and then the cooling system releases the heat to the external environment.

Q: What are the advantages of copper tube water-cooled liquid cooled plates?

A: Advantages include high thermal conductivity, fast response, ability to adapt to complex shapes, and good corrosion resistance.

Q: What are the production processes of copper tube water-cooled liquid cooled plate?

A: The production process includes key steps such as raw material stamping, cleaning, flux coating, assembly, welding, air tightness testing and surface treatment.
